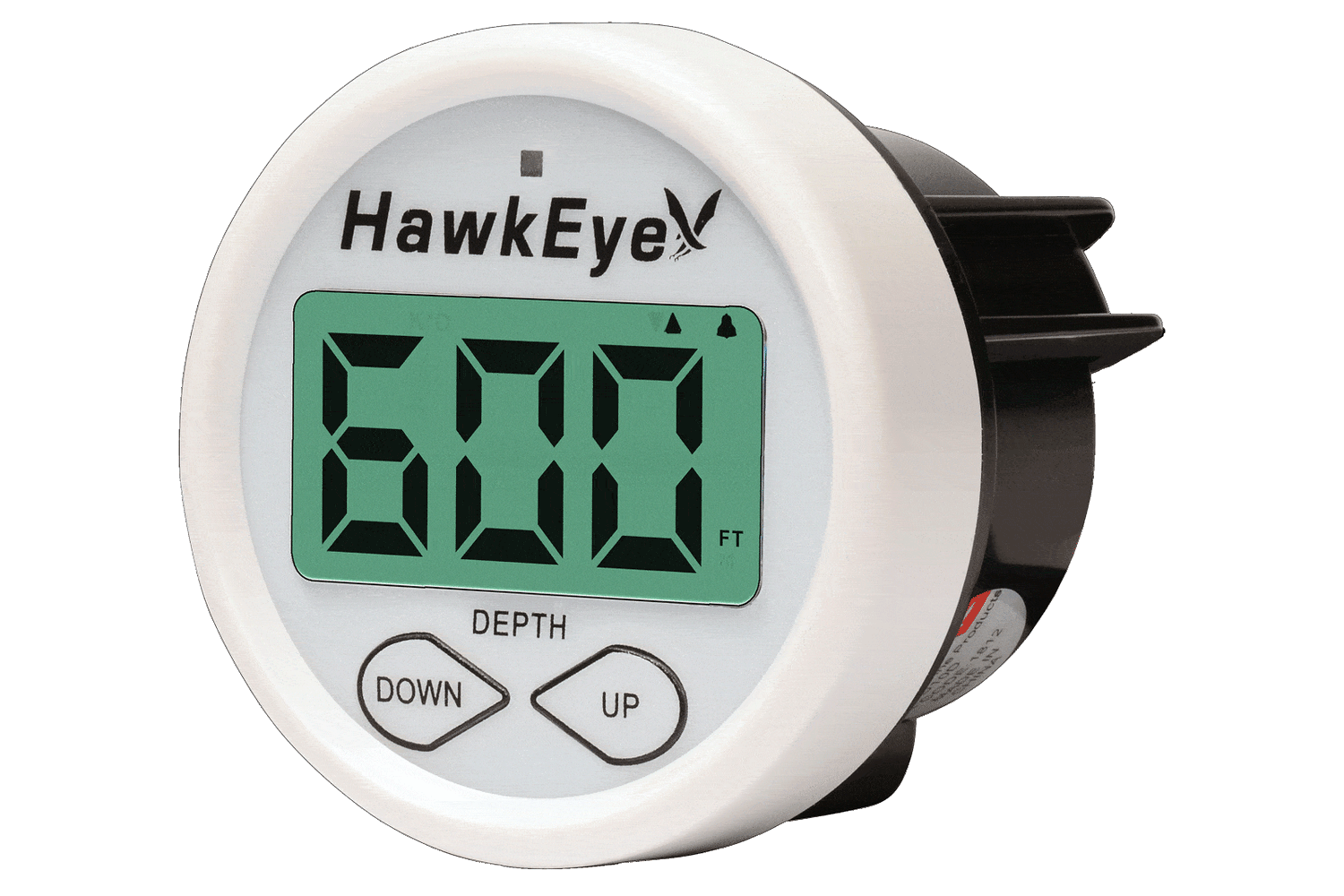

Depth-Finder
DepthTrax 2B | Boat Mount Depth Finder
depth-finder-cover
Depth-Finder-Accessories
Transom-Glue-In-Transducer
thru-hull-transducer
DEPTHTRAX 2B | BOAT MOUNT DEPTH FINDER
white-depth-finder
DEPTHTRAX 2B | BOAT MOUNT DEPTH FINDER
Depth-Finder
depth-finder-cover
Depth-Finder-Accessories
Transom-Glue-In-Transducer
thru-hull-transducer

DepthTrax 2B | Boat Mount Depth Finder

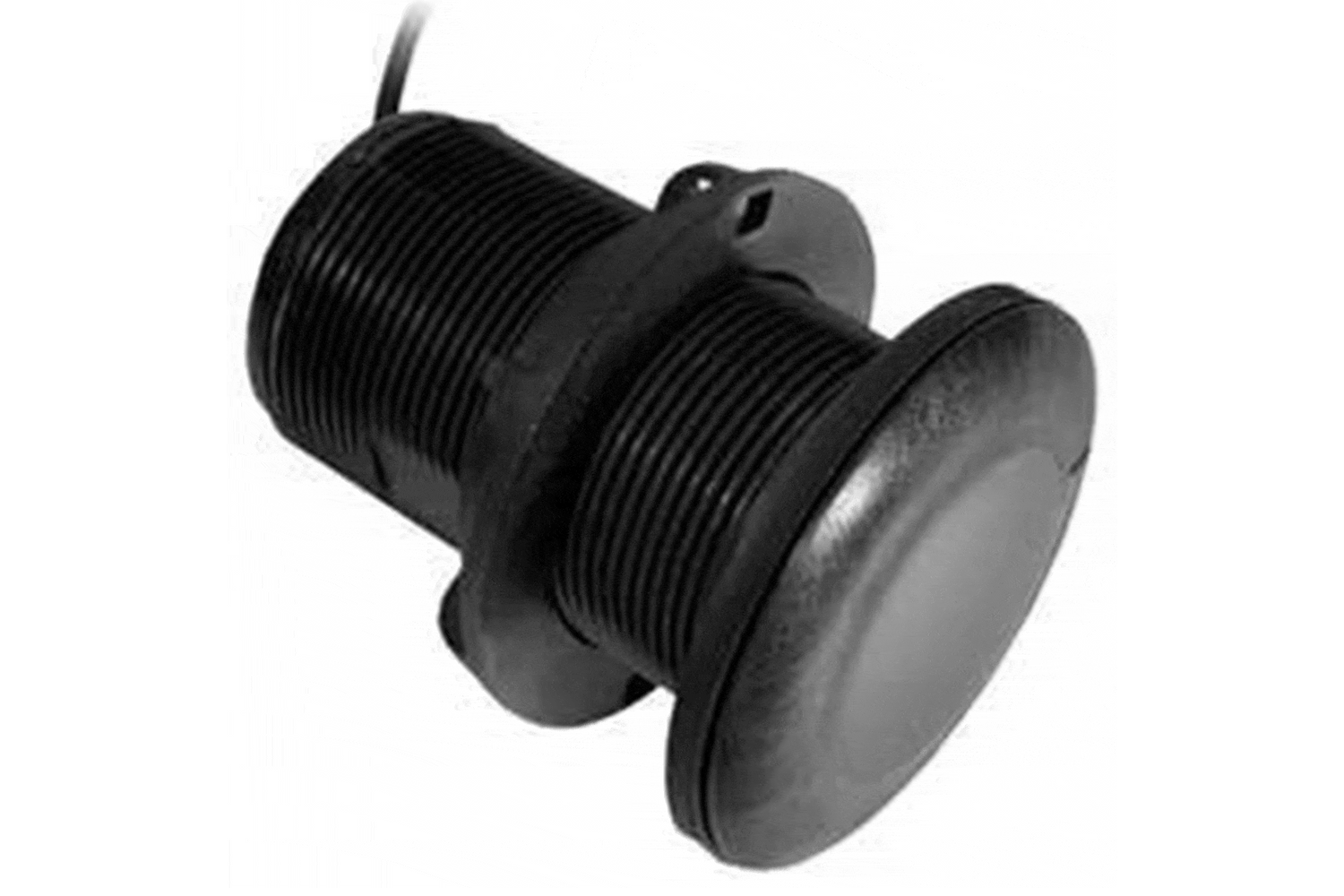

The DepthTrax® 2B employs advanced algorithmic programming in its SONAR technology, offering precise depth measurements that are refreshed four times per second, up to a depth of 600 feet. With the availability in both a combination transom-mount / glue-in-hull or a thru-hull transducer, it's adaptable to meet your specific needs.
Transducer: Transom Mount or Glue-In-Hull
Regular price $119.99
Regular price Sale price $119.99
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

FEATURES

SPECIFICATIONS

DIMENSIONS:

2" Diameter x 1.75" Depth (51 x 45 mm)

SCREEN SIZE:

Height: 1.65" Width: .87" (42 x 22 mm)

OPERATING TEMPERATURE:

0~160°F (-18~71 °c)

DEPTH RANGE:

2.5 ft (.7 m) ~ 600 ft (180 m)

WATERPROOF RATING:

IPX5 (front face only)

TRANSDUCER CONNECTOR:

2-Pin, Water Resistant

TRANSDUCER CABLE LENGTH:

30 ft (9 m)

TRANSDUCER FREQUENCY:

200 kHz

TRANSDUCER BEAM ANGLE:

14 Degrees

POWER REQUIREMENT:

12-14 VDC

CURRENT DRAW:

200 mAh

TRANSDUCER CONFIGURATIONS

WHAT'S INCLUDED

Quick Start Guide

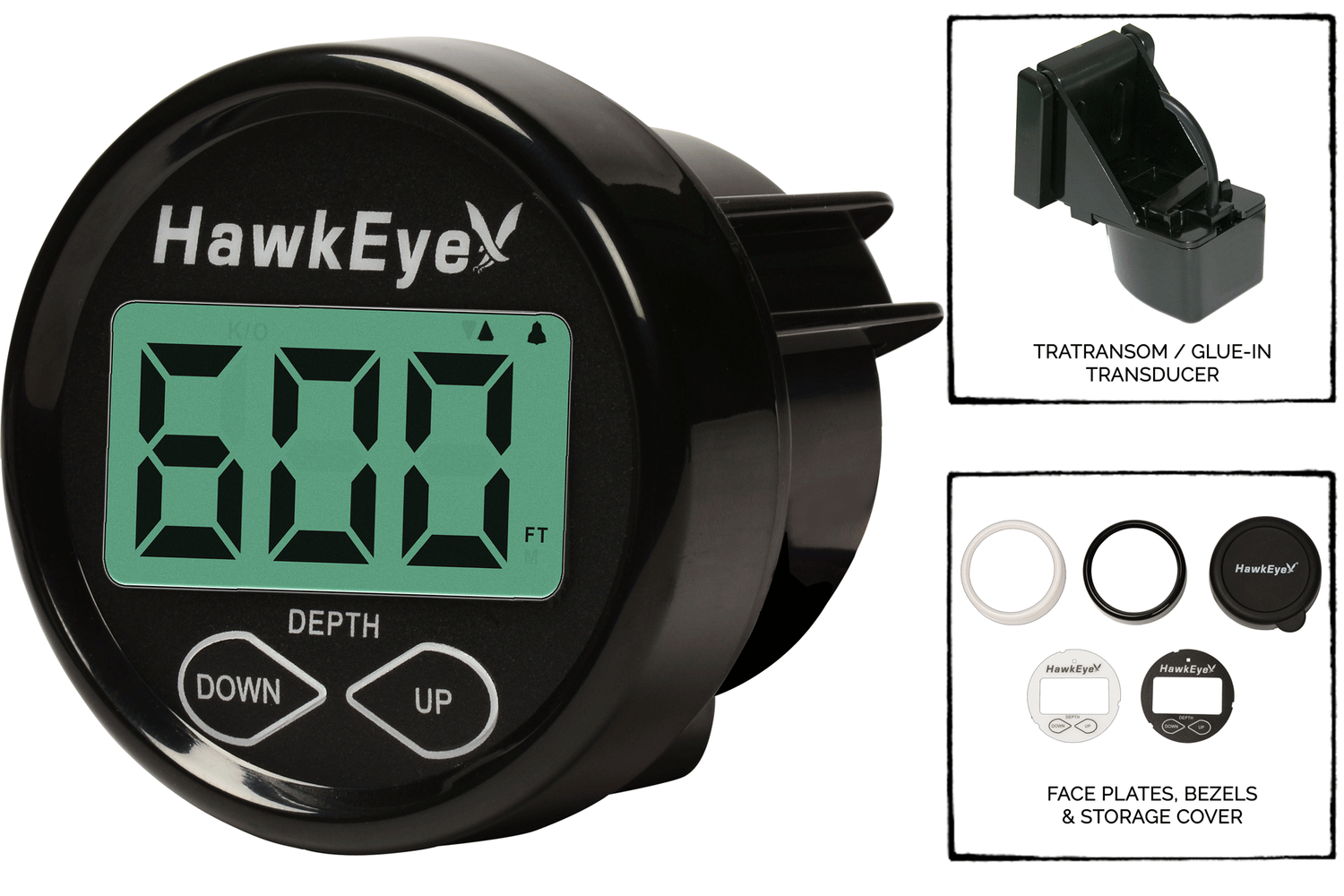

DepthTrax® 2B Display Assembly:

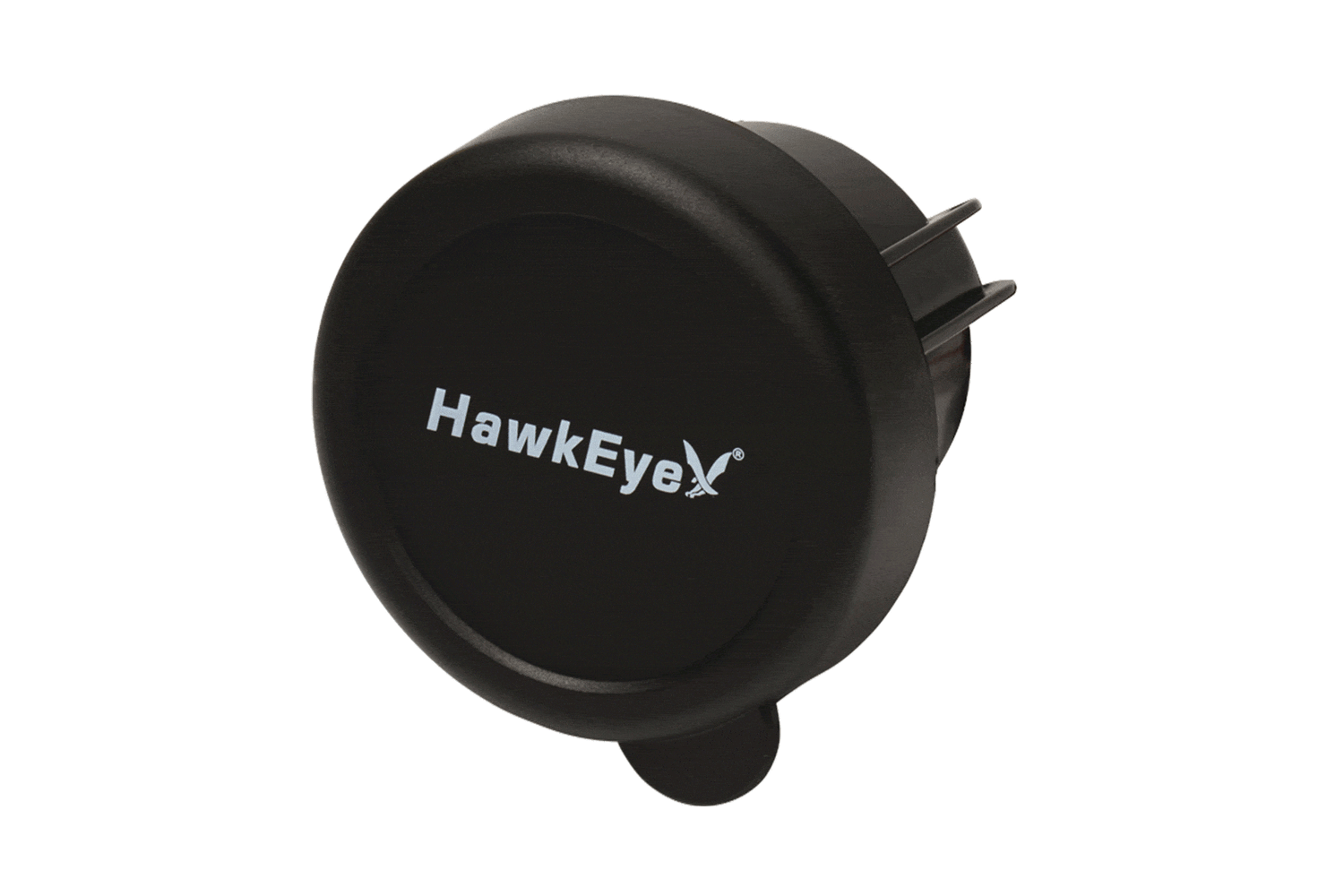

  • Storage Cover
  • White & Black Face Plates & Bezels
  • Display In-Dash Mounting Bracket
  • Thick Dash Extension
  • Power Harness with Waterproof Fused Holder
  • 2-Pin Transducer Connector

Transducer Assembly:

  • Integrated Cable and 2-Pin Plug-&-Play Connector
  • Transducer Mounting Hardware

PLEASE NOTE: If gluing in-hull, we recommend purchasing our "Slow Cure Epoxy Kit for In-Hull Transducer Mounting (2-Pack)"

discover new depths

Unleash the power of precision with HawkEye DepthTrax® 2B, a boat mount depth finder combining cutting-edge sonar technology with seamless integration. Navigate with confidence and secure safe passage in unfamiliar waters. Elevate your boating experiences - journey fearlessly with HawkEye® DepthTrax® 2B.

600 Ft

Depth Range

The advanced sonar offers unbeatable depth readings down to 600 feet and is capable of generating accurate readings on plane up to 60 MPH.

DepthTrax®

INTELLIGENT SONAR

Proprietary algorithmic programming automatically pinpoints and intensifies bottom echoes, thereby greatly enhancing the accuracy of depth measurements.

automatic

range & sensitivity

There's no need for navigating through complex menus to adjust performance; the DepthTrax 2B efficiently manages all filters for you, accurately adjusting the right settings to precisely represent the water depth.

3-Stage Advanced

Warning System

Activates both audible and visual alerts when shallow or deep water conditions reach user set parameters.

Dual-Mount

Transducer

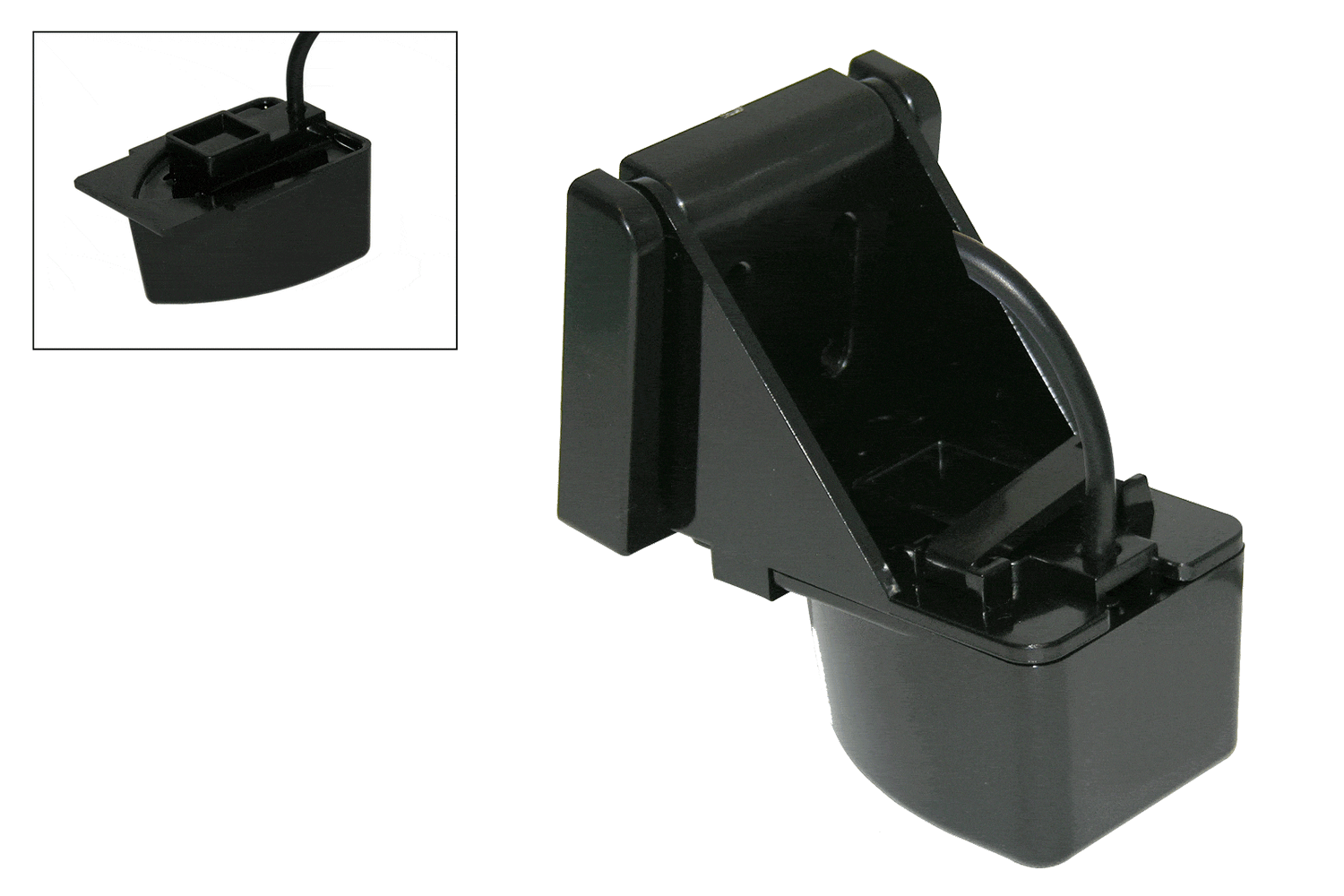

The dual mount transducer allows for transom mounting or adhesive attachment within most boat hulls.

Includes

4 Color Combinations

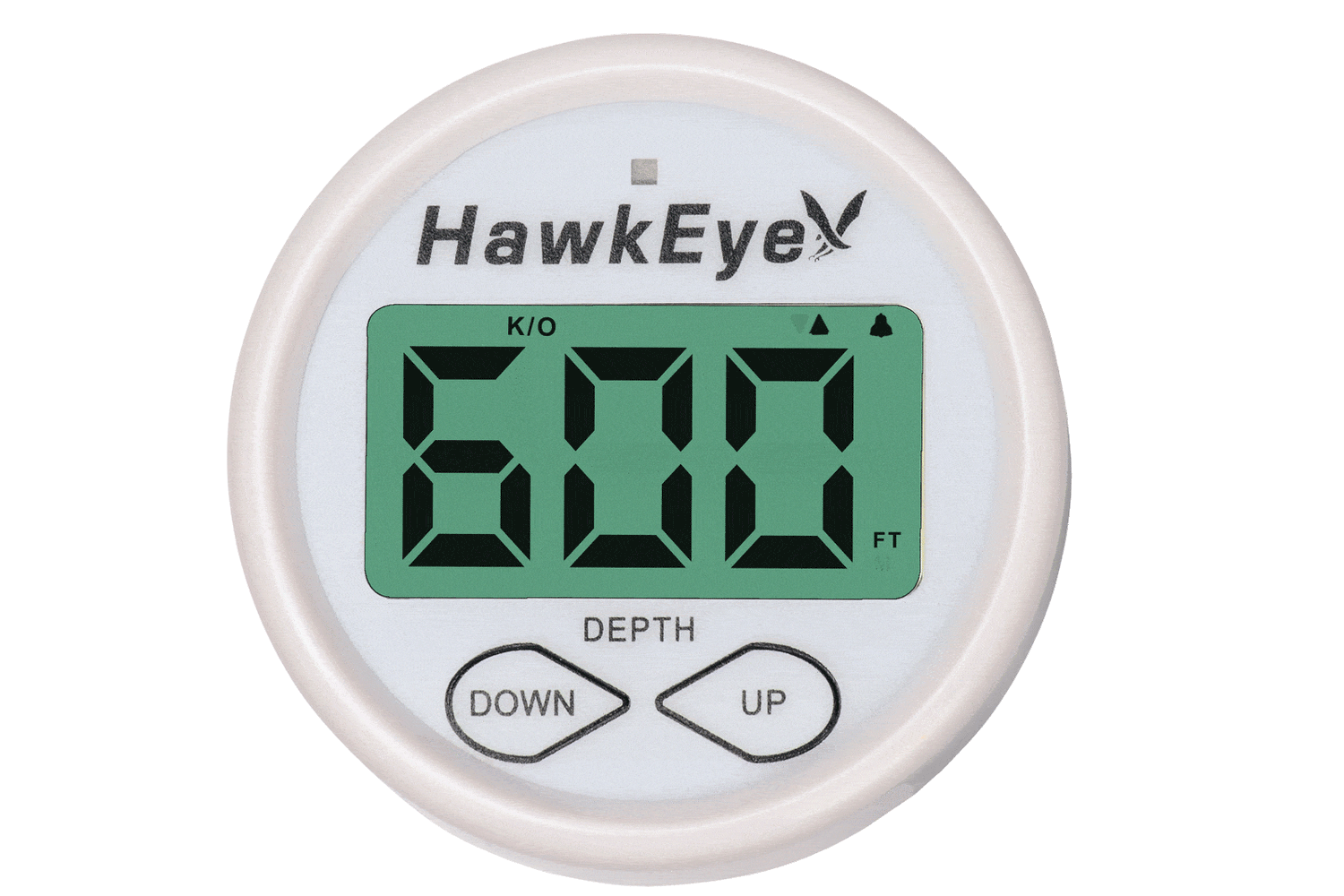

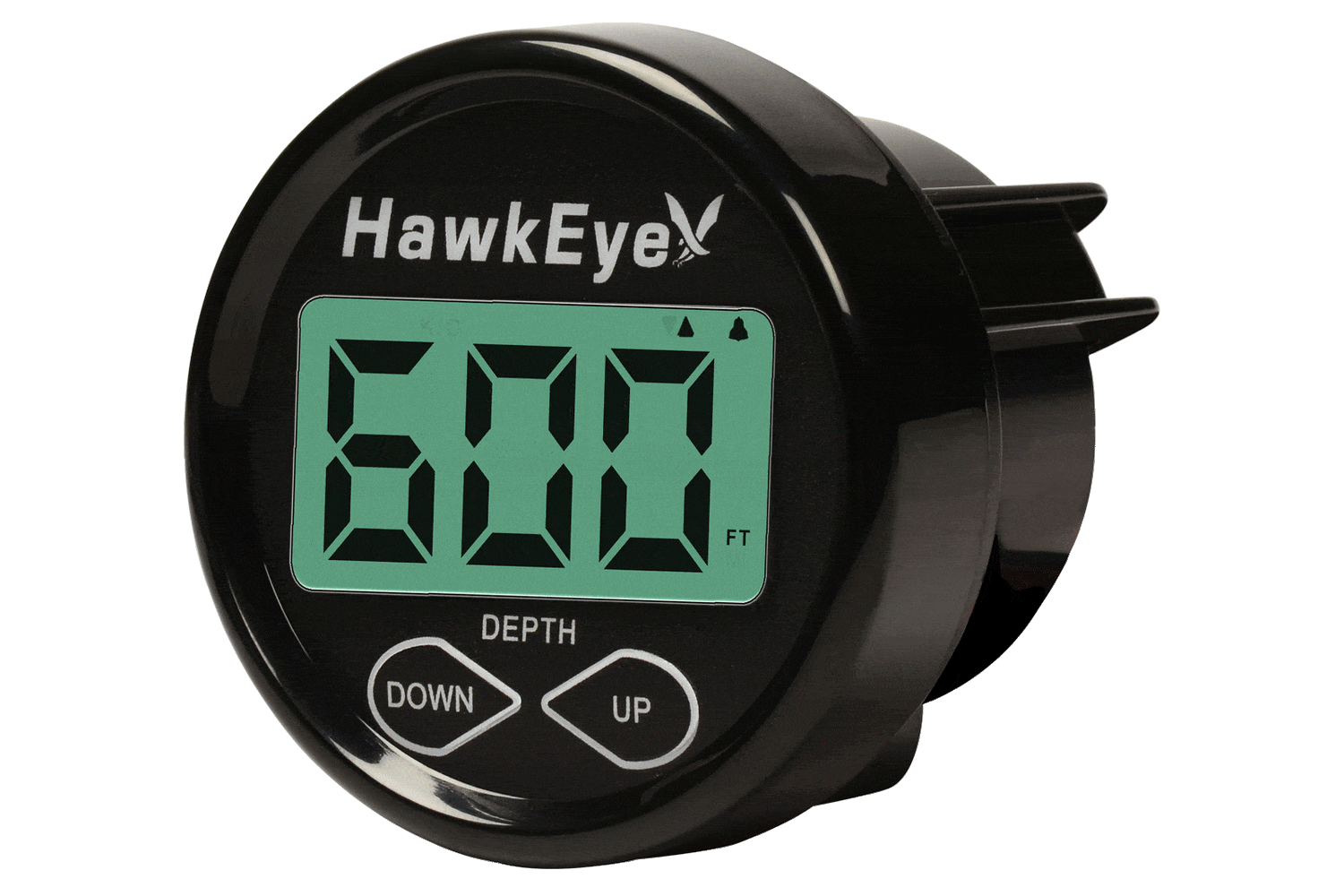

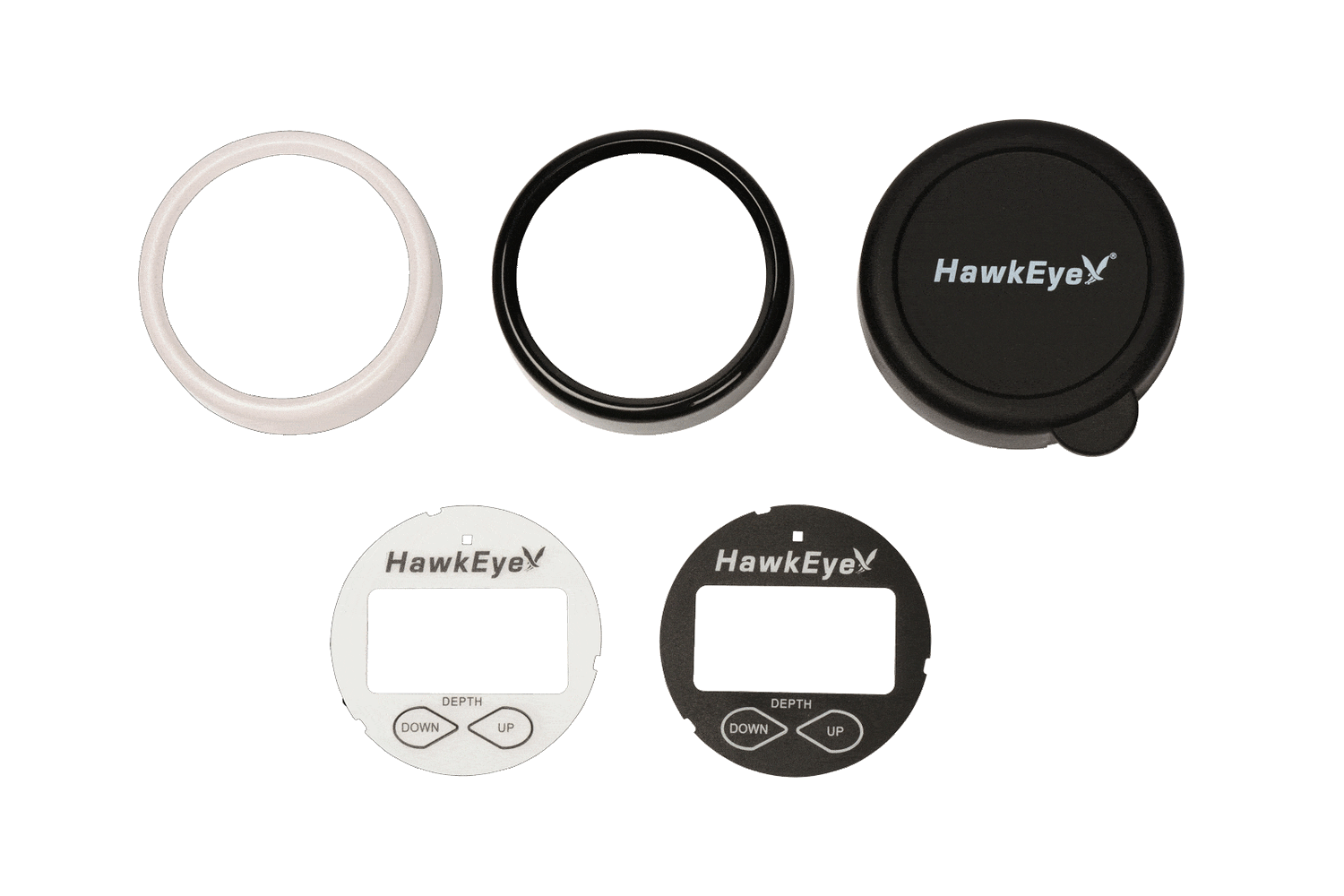

Personalize to suit your preferences. Included in the package are both white and black face plates and bezels, enabling you to generate four unique color combinations via mix-and-match. In addition, we offer an upgrade to a chrome bezel, designed to perfectly align with factory OEM dashboards.

Designed and Supported

In The USA

HawkEye® products are produced domestically and abroad, incorporating technology that embodies the spirit of American innovation and creativity.

2 YEAR WARRANTY

YOU BREAK IT... WE FIX IT...

For 2 years from the date of your original purchase we will warranty your depth sounder against any and all damage.  Better yet, we promise to make it as painless as possible.
