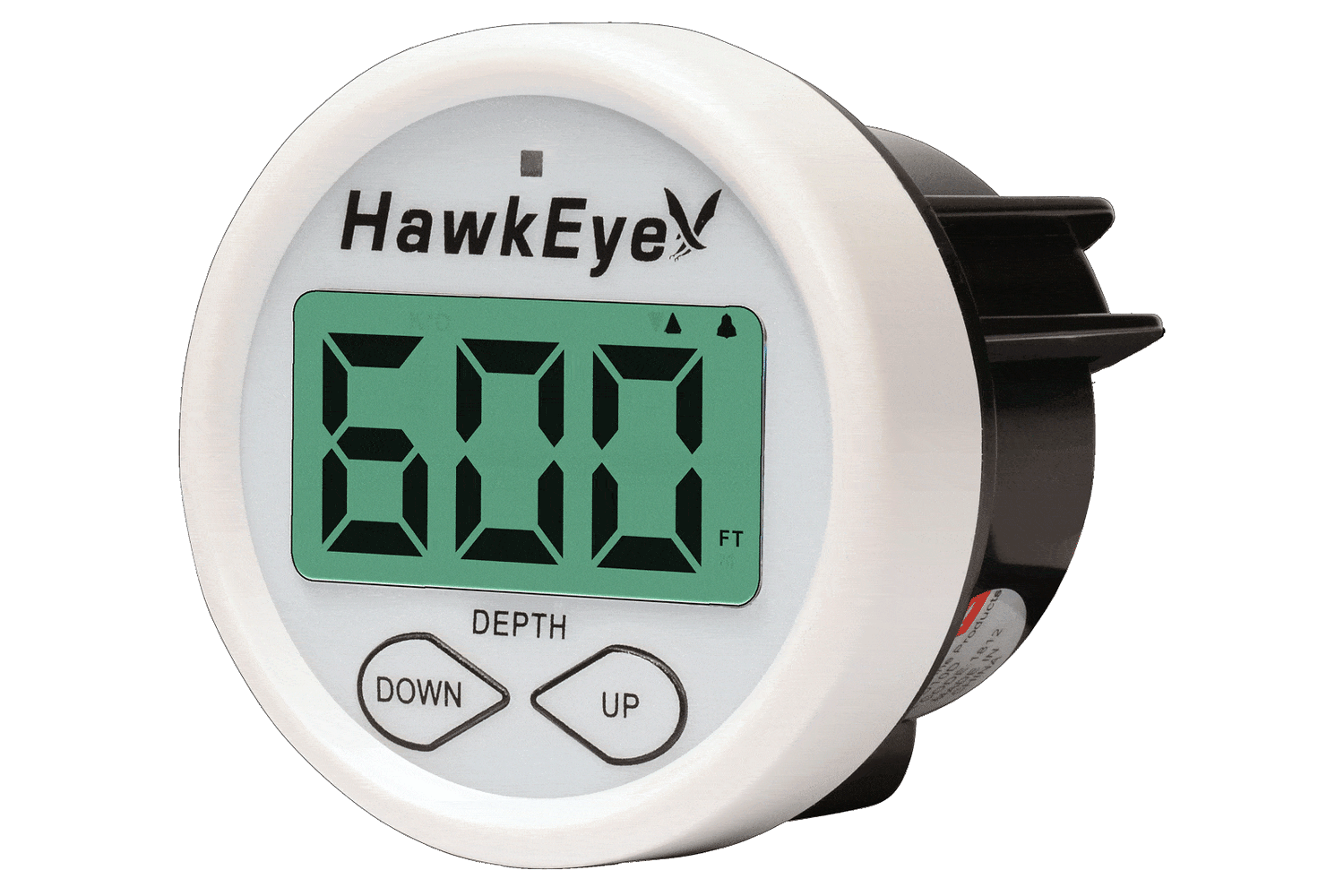

DepthTrax 2B (Display Only)

DepthTrax 2B (DT2B)

DepthTrax 1B (DT1B)

D10D

DF1000D

1000-01

Any 200 kHz Transducer

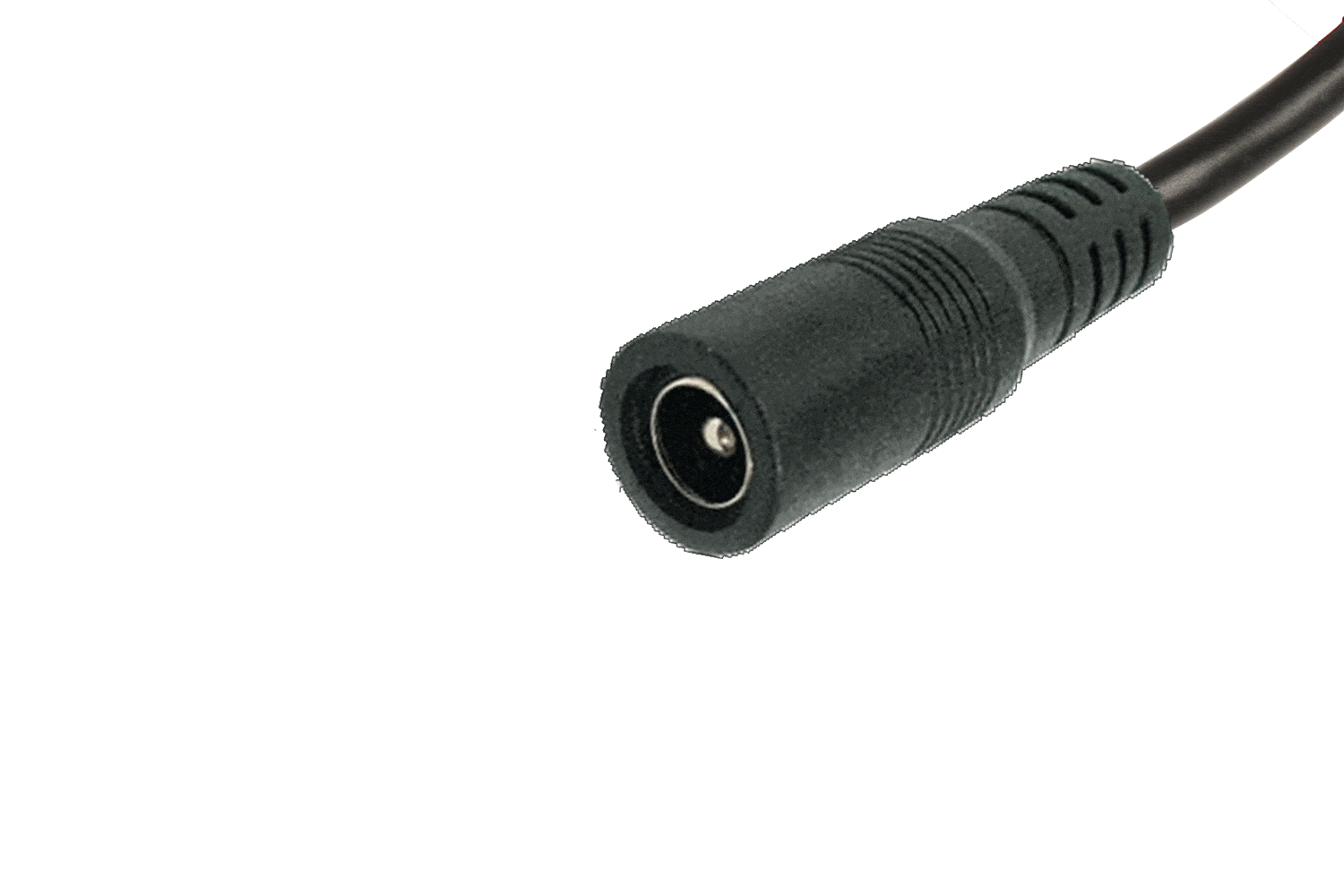

NOTE: To be compatible, the transducer must have a MALE HawkEye® 2-Pin Connector.

DepthTrax® 2B Display Assembly

• Integrated 2-Pin Plug-&-Play Connector

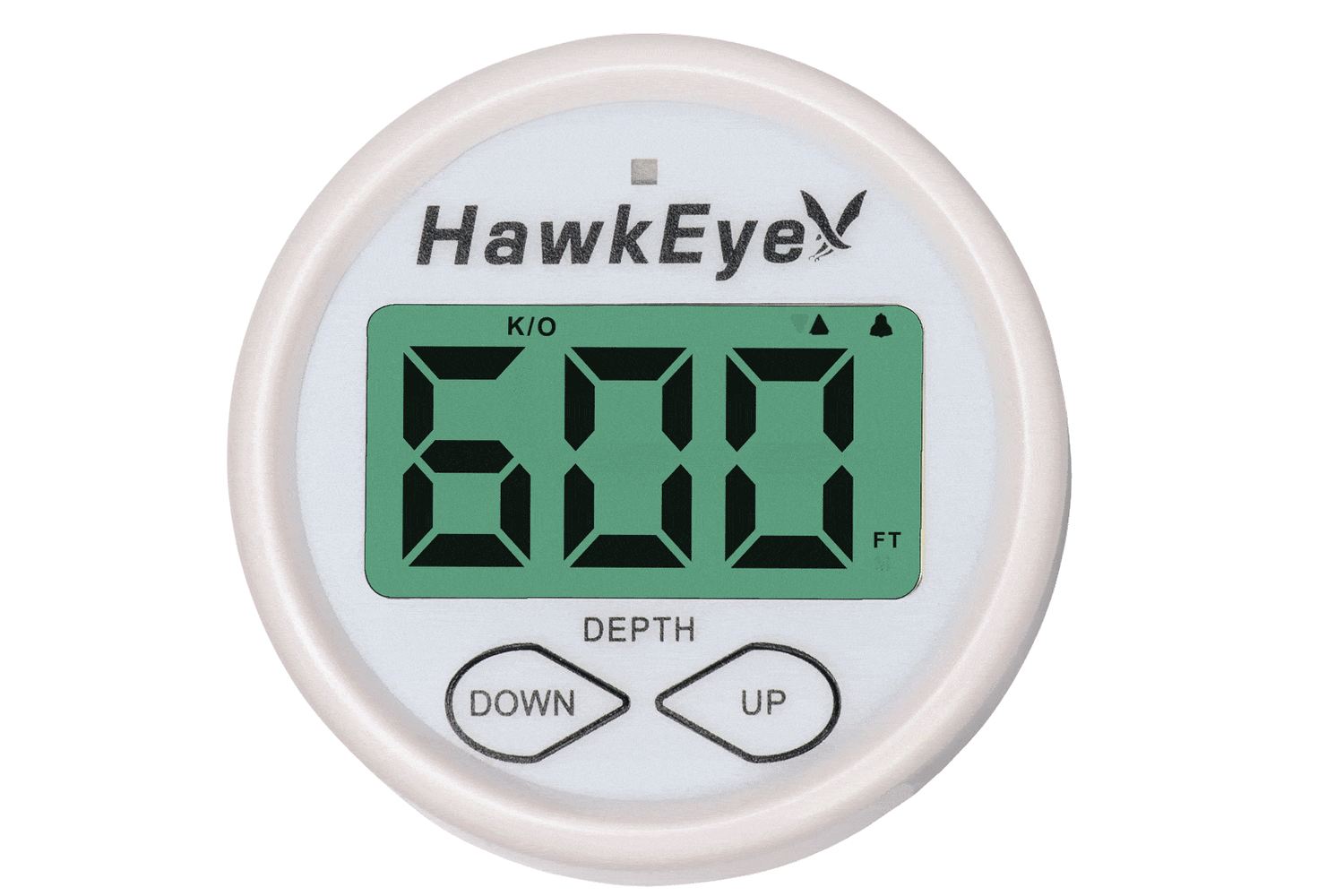

White Bezel & Face Plate

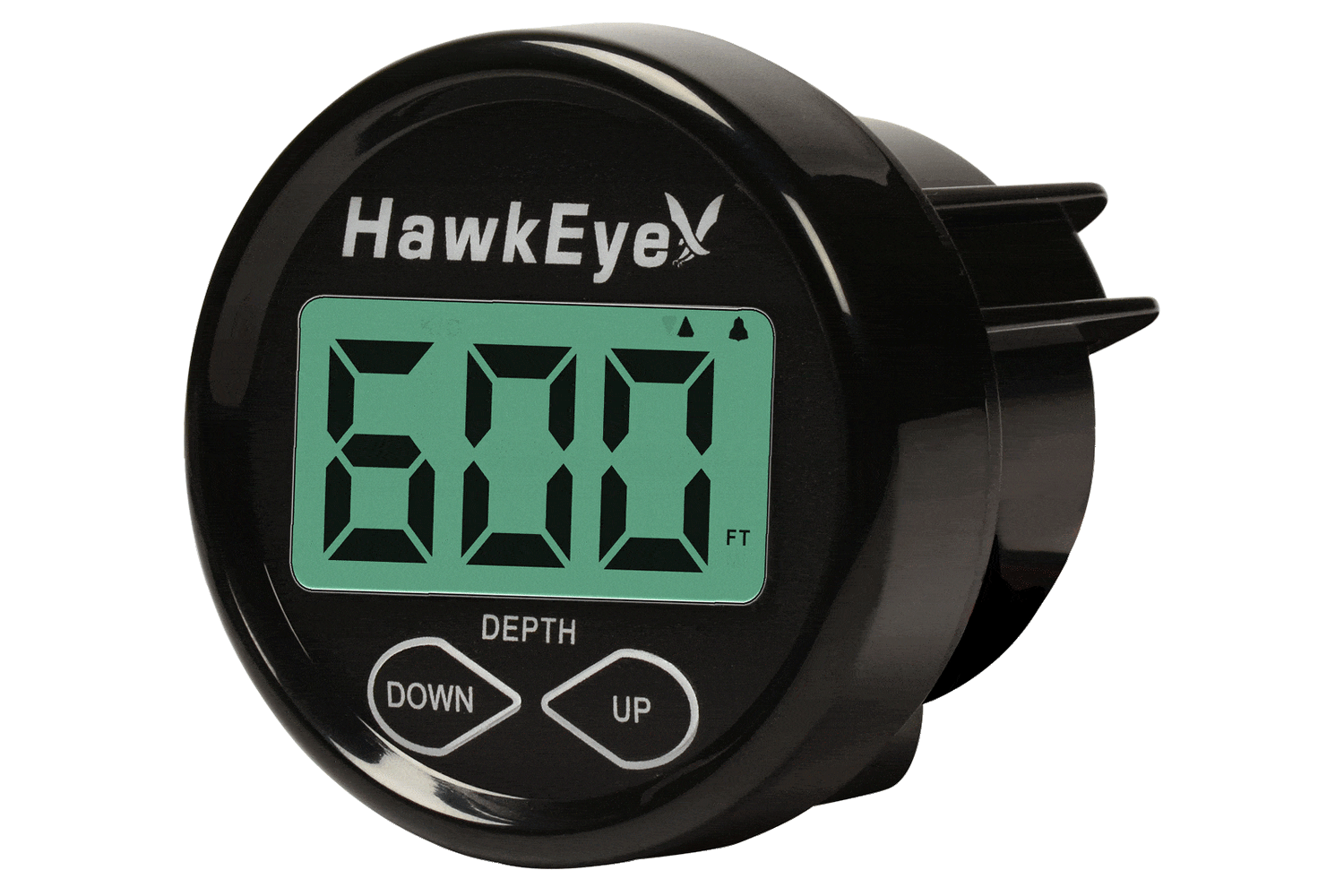

Black Bezel & Face Plate

In-Dash Mounting Bracket

HawkEye® Installation and Operation Manuals

HawkEye® TechTutorial™ | DepthTrax® Boat
Mount Depth Finders | Installation & Operation

HawkEye® TechTutorial™ | Boat Mount Depth
Finders | Installation & Operation (Full Video)

HawkEye® TechTutorial™ | Installing a Boat
Mount Depth Finder Display

HawkEye® TechTutorial™ | Transom Mounting a
Transducer on a Boat

HawkEye® TechTutorial™ | Gluing a
Transducer Inside the Hull of a Boat

HawkEye® TechTutorial™ | Installing a
Thru-Hull Transducer

HawkEye® Product
SnapShot™ | DepthTrax® Boat Mount Depth Finders

DIMENSIONS:

2" Diameter x 1.75" Depth (51 x 45 mm)

SCREEN SIZE:

Height: 1.65" Width: .87" (42 x 22 mm)

OPERATING TEMPERATURE:

0~160°F (-18~71 °c)

DEPTH RANGE:

2.5 ft (.7 m) ~ 600 ft (180 m)

WATERPROOF RATING:

IPX5 (front face only)

TRANSDUCER CONNECTOR:

2-Pin, Water Resistant

POWER REQUIREMENT:

12-14 VDC

CURRENT DRAW:

200 mAh
