AIRMAR® XDR-AMR-P23-9150 Non Temp Transom Mount Transducer

200W ~ 200 kHz ~ Transom Mount Transducer for all HawkEye® Boat Mount Depth Finders without Temperature. Can be mounted on transoms from 3° to 20°. Includes 2-Pin waterproof plug for plug-and-play connection to any HawkEye® or NorCross OEM Depth Finder that does not have a water temperature feature.

MADE IN THE USA

COMPATIBILITY
WHAT'S INCLUDED
INSTRUCTIONS
VIDEOS
SPECIFICATIONS
$59.99
$59.99
Shipping calculated at checkout.
NOTIFY ME WHEN IN STOCK

COMPATIBILITY

DEPTHTRAX 2B (DT2B)

DEPTHTRAX 1B (DT1B)

D10D

1000-01

All NorCross OEM Boat Mount Depth Finders without Temperature

NOTE: To be compatible, the display must have a FEMALE HawkEye® 2-Pin Connector.

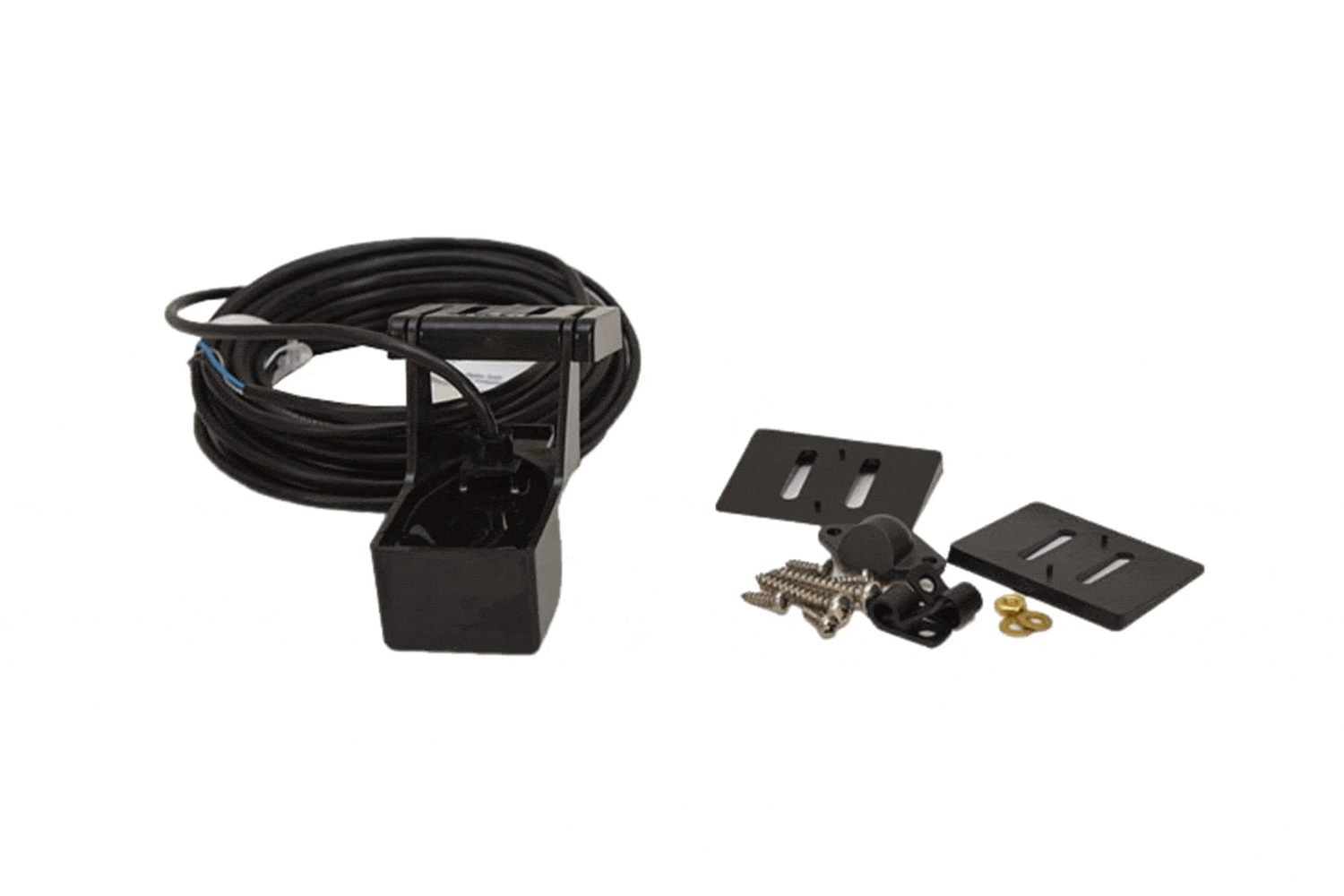

WHAT'S INCLUDED

Transducer Assembly

  • 30 ft Cable with Integrated 2-Pin Plug

Mounting Bracket

Mounting hardware

INSTRUCTIONS

HawkEye® Installation and Operation Manuals

VIDEOS

HawkEye® TechTutorial™ | Transom Mounting a
Transducer on a Boat

SPECIFICATIONS

FREQUENCY:

200 kHz

HULL DEADRISE COMPATIBILITY:

0° to 7°

BANDWIDTH:

11°

CABLE LENGTH:

30 ft (9 m)

CABLE PLUG:

2-Pin Plug-&-Play
