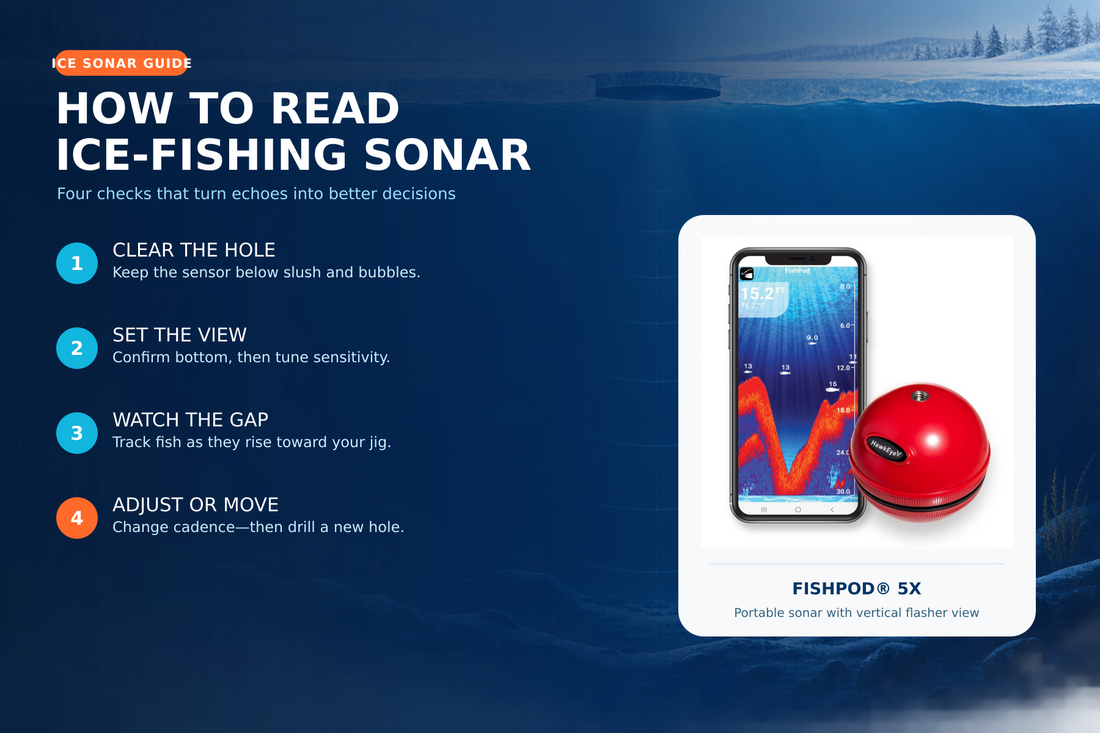

To read an ice fishing fish finder, first identify the bottom, then lower your jig into the sonar cone and watch for a separate return moving toward it. The bottom usually appears as the strongest, most consistent band. Your jig should form a smaller moving signal. A fish often appears as another return that rises, falls, thickens, or separates from the bottom as it enters the beam.
The real advantage comes from learning what the fish does next. If it rises quickly, slow your jigging before it reaches the lure. If it follows but will not close the gap, change cadence, size, color, or bait. If nothing enters the cone after a reasonable search, move.
What Ice-Fishing Sonar Actually Shows
Sonar sends a sound pulse through the water and places the returning echoes by depth. Through an ice hole, you are looking at a vertical slice beneath the sensor. The display is not a camera; you interpret returns using depth, movement, signal strength, and how they respond when you move the lure.
The most useful signals are:
-
Surface clutter: Noise near the top from the hole, slush, bubbles, or nearby objects
-
Your jig: A small return that moves when you lift or drop the rod tip
-
Fish: Returns that move independently of your jig
-
Bottom: The strong, stable return at the deepest part of the view
-
Weeds or soft debris: Irregular returns extending above the bottom
A vertical flasher emphasizes the newest echoes, while scrolling sonar adds short-term history. Use the view that makes movement easiest for you to interpret.
Ice Fishing Sonar Setup: Start With a Clean Signal
A poor setup can make a good sonar look confusing. Before changing every setting, make sure the sensor has a clear path into the water.
1. Clear the Hole
Remove enough slush to keep the sonar face in clean water. Air trapped in slush and bubbles can scatter sound and create clutter. Suspend or hold the sensor so it remains stable and points down rather than resting against the side of the hole.
2. Confirm the Bottom
Start with automatic depth range if your system offers it. The bottom should appear at a stable depth. If it jumps several feet while nothing else changes, check the sensor position, clear remaining slush, and reduce excessive sensitivity.
A thicker return can suggest a harder or more reflective bottom. Treat it as a relative comparison between nearby holes, not an exact identification of bottom material.
3. Lower the Jig Into the Beam
Drop the lure slowly while watching the screen. Its return should move downward toward the bottom as line leaves the reel.
If the jig disappears, it may be outside the sonar cone, too small to show at the current sensitivity, or lost in bottom clutter. Move the sensor slightly, center your line, or increase sensitivity in small steps.
4. Fine-Tune Sensitivity
Use enough sensitivity to see your jig consistently without turning the entire water column into noise.
A practical adjustment sequence is:
-
Begin at a moderate setting.
-
Lower the jig to the depth you plan to fish.
-
Increase sensitivity until the lure appears reliably.
-
Reduce it slightly if clutter masks separate targets.
How to Read an Ice Fishing Flasher
A circular flasher and a vertical flasher arrange information differently, but both show where the latest targets are in the water column.
Find the Three Reference Points
Locate:
-
The surface
-
The bottom
-
Your lure
If another return moves without matching your rod movement, it may be a fish.
Watch Movement, Not Just Color
Color or thickness can suggest return strength, but movement is usually more useful. The shrinking gap between a fish and your jig is the actionable information.
| Sonar pattern | Likely meaning | What to try |
|---|---|---|
| Target rises quickly toward the jig | Active or curious fish | Reduce jigging as it closes |
| Target stops just below the jig | Interested but cautious | Add a pause or smaller movement |
| Target drops away after a hard snap | Presentation may be too aggressive | Slow the cadence |
| Return blends into bottom, then separates | Fish may be holding tight to bottom | Use zoom or raise the jig slightly |
| No targets after several minutes | Empty water or fish outside the cone | Check nearby holes |
Use the screen as feedback: make one deliberate change, watch the response, and adjust again.
How to See Your Jig on Sonar
If the fish finder is not showing your jig, work through the problem in this order:
-
Make sure the sensor is submerged below slush and points straight down.
-
Check that the lure is within the cone, especially in shallow water.
-
Increase sensitivity gradually.
-
Use a larger lure temporarily to confirm the system can track it.
-
Move the lure a foot or two above bottom if it is blending into the bottom return.
-
Check whether another nearby sonar is creating interference.
-
Verify battery charge and the connection between the sensor and display.
A wider beam covers more area at a given depth, while a narrower beam examines a smaller area. In shallow water, even a wide beam covers a relatively small circle, so a lure can leave the cone more easily than expected.
Use Sonar to Decide When to Stay or Move
Ice fishing sonar is as useful for rejecting water as it is for finding fish.
A simple hole-hopping routine is:
-
Check depth and bottom.
-
Drop to the productive zone.
-
Jig long enough to give nearby fish a chance to enter the beam.
-
Change the presentation once if fish appear but do not commit.
-
Move if the screen remains empty or fish repeatedly ignore several reasonable changes.
Be consistent. Sampling each hole with the same process makes differences in depth, cover, and fish activity easier to recognize. A fast-rising target usually deserves less movement as it nears the bait; a fish that repeatedly approaches and leaves is telling you to change something.
Portable Sonar Choices for Ice Fishing
The right format depends on whether you prefer using a phone or a dedicated display.
The FishPod 5X Bluetooth fish finder connects to a compatible phone or tablet and includes a vertical flasher view. HawkEye specifies a 1.5-to-199-foot range, 200 kHz frequency, 45-degree beam, rechargeable battery rated for 30 hours of continuous use, IPX7 water resistance, and an operating range beginning at 0°F. The FishPod app offers customizable sonar views, sensitivity, depth range, zoom, layout, and color.
If you prefer an integrated display, the FishTrax 1C-i Ice Fishing System uses dual 200/83 kHz frequencies and 14/26-degree beams. HawkEye specifies a 1.5-to-240-foot range, four-AAA power, and 30 hours of continuous use. It includes an IceShack enclosure, weighted pad, and adjustable bracket.
For anglers who already own a FishPod 5X, the FishPod Ice Fishing Bundle packages the IceShack enclosure, adjustable bracket, weighted pad, and smartphone holder. You can also compare the current HawkEye ice-fishing collection before choosing a format.
Charge everything before leaving, protect the phone from direct wind, and carry an appropriate backup power plan.
Common Ice-Fishing Sonar Mistakes
Turning Sensitivity Too Low
A clean screen is not useful if it hides your jig. Set sensitivity around the lure you are fishing.
Chasing Every Line
Weeds, bubbles, and nearby sonar can create marks. Look for movement independent of your lure.
Fishing Only the Bottom
Fish can suspend anywhere in the water column. Watch the entire display during the drop and retrieve so you do not send your lure beneath active fish.
Ignoring Ice Safety
Sonar does not tell you whether ice is safe. Thickness and strength can vary over short distances because of current, springs, and weather. The Minnesota DNR’s ice-safety guidance emphasizes that no ice can be considered completely safe. Check local conditions, carry appropriate safety equipment, and never substitute a sonar reading for testing the ice.
Frequently Asked Questions
Can you use a regular fish finder for ice fishing?
Yes, if the system can position its transducer vertically below the hole and operate within the expected temperature range. A portable power source, stable sensor mount, and ice-friendly display setup make the system easier to use.
What should an ice-fishing jig look like on sonar?
It should appear as a small return that rises and falls immediately when you move the rod. Its appearance changes with lure size, depth, sensitivity, beam angle, and how centered it is in the cone.
Why does my jig disappear near the bottom?
The lure may be blending into the bottom return or leaving the sonar cone. Raise it slightly, center the line beneath the sensor, use zoom if available, and increase sensitivity only as needed.
What is the best sensitivity setting for ice fishing?
There is no universal number. Use the lowest setting that shows your jig consistently at the depth you are fishing while keeping separate targets readable.
Is a flasher better than scrolling sonar for ice fishing?
A flasher emphasizes the newest echoes and makes real-time lure tracking intuitive. Scrolling sonar preserves short-term history. Many anglers switch between them depending on the presentation and what they find easiest to read.
Why are there vertical lines or extra noise on the display?
Possible causes include excessive sensitivity, slush or bubbles around the sensor, electrical noise, or interference from another sonar operating nearby. Clear the hole, stabilize the sensor, reduce sensitivity slightly, and increase distance from other active units.
Turn the Screen Into a Decision Tool
Learning how to read an ice fishing fish finder comes down to four habits: establish the bottom, make your jig visible, watch how fish close the gap, and move when the screen gives you no reason to stay.
Practice the sequence in known water before relying on it during a fast search. If your readings remain unstable after checking sensor position and settings, use the HawkEye Support Center for current manuals, training videos, and product-specific troubleshooting.
